How a Freeze Dryer Works
Freeze dryers (or lyophilizers) are used to prepare samples for long-term storage or as part of sample preparation processes.

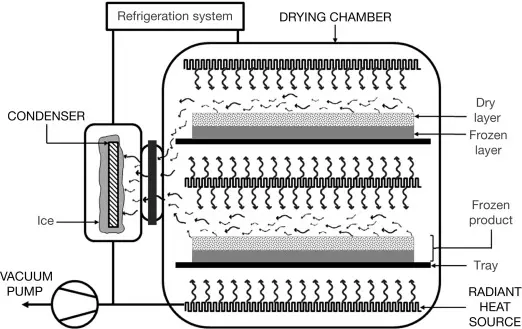

Freeze dryers utilize a combination of cooling and vacuum pressure to support lyophilization for a wide range of research and manufacturing applications. During freeze drying, moisture is removed by placing materials on shelves exposed to vacuum conditions. Under vacuum, the temperature is gradually lowered and raised. This process causes water vapor to change phase from gas (vapor) to solid (ice).
Through the sublimation process, where the sample transitions directly from solid to gas, moisture is removed from the sample using controlled heating and vacuum conditions. The vapor is then collected on a cold condenser coil in the form of ice.
Freeze dryers are commonly used for:
- Material stabilization
- Long-term storage
- Pharmaceutical applications
- Food processing
Guide to Choosing the Right Freeze Dryer

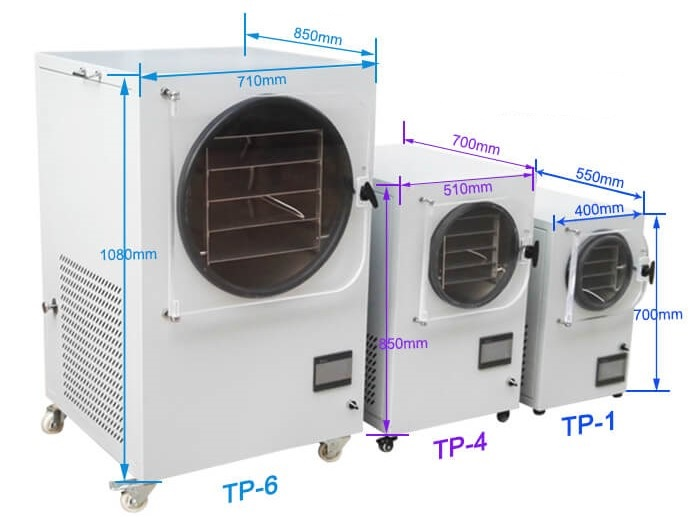

1.Determining the Type and Size of Freeze Dryer
Key questions to consider:
- How much sample volume will be processed?
- What type of sample will be processed?
- How much liquid content does the sample contain?
When selecting a freeze dryer size, vendors generally recommend choosing a system with approximately twice the required processing volume. For example, a 6L freeze dryer is typically recommended for processing around 3L of sample.
You should also consider:
- Where will the freeze dryer be installed?
2. Determining Freeze Dryer Chamber, Condenser, and Solvent Temperature
Key considerations:
- What is the critical temperature of your product or sample?
- What solvent is being used?
A temperature difference of approximately 15–20°C between the sample eutectic temperature and collector temperature is generally required.
For solvents such as acetonitrile, a multi-stage freeze drying system may be necessary.
Additional questions:
- What condenser temperature is required?
- What freeze dryer chamber temperature is required?
- What condenser capacity is needed?
3. Determining the Vacuum Pump Type
Important considerations:
- What type of vacuum pump is required?
When working with acids or solvents, scroll pumps or hybrid pumps are recommended. Rotary vane pumps may become damaged if solvent vapor enters the collector and contaminates the pump oil.
Ensure the selected vacuum pump matches your application requirements.
Additional considerations:
- Is stoppering under vacuum required?
Optional accessories allow stoppering under vacuum or nitrogen pressure without requiring compressed gas systems.
- Will the freeze dryer be used for multiple applications?
Hybrid vacuum pumps are recommended for shared freeze dryer usage or operations involving varying conditions and applications.

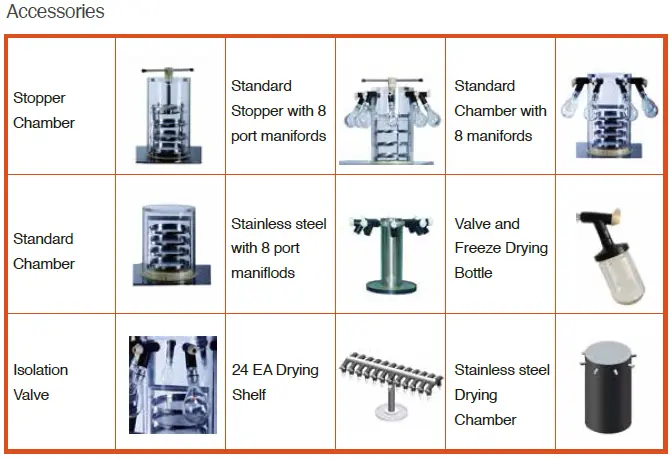

4. Determining the Required Freeze Dryer Accessories
Questions to consider:
- Are additional accessories required?
- How much automation is needed?

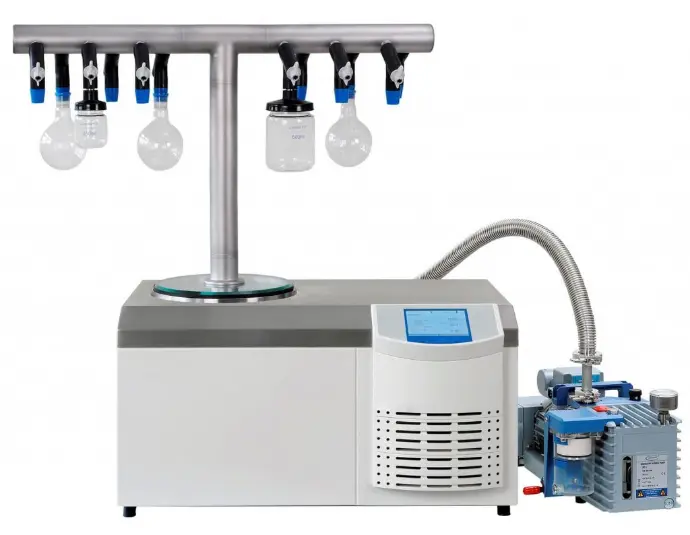

- Will samples be freeze dried in flasks, test tubes, vials, or bulk quantities?
Various freeze drying accessories are available to support simultaneous drying processes. Test tubes and vials can be placed into a single chamber for multiple-sample drying. Bulk samples can be processed using trays.
Freeze Dryer Supplier in Indonesia
After considering the factors above, it is time to choose the freeze dryer specifications that best fit your needs.
Maha Chemicals offers freeze drying solutions tailored to your application requirements. Together with our partner Toption, we provide freeze dryers suitable for a wide range of applications.

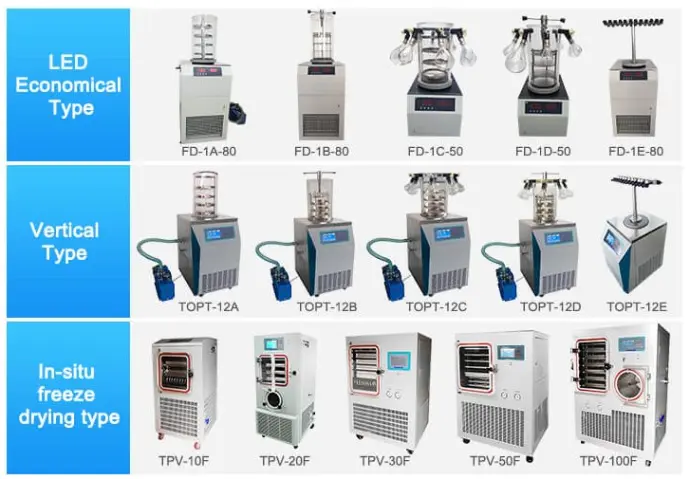

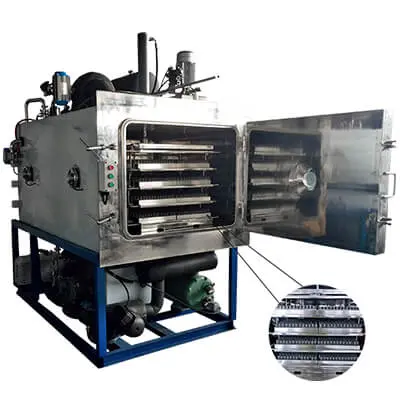

With various models available for household, laboratory, commercial, and industrial applications, you can select a freeze dryer that matches your operational needs. Maha also offers a wide range of supporting accessories.
Consult your requirements with our expert technical team today.
Interested in learning more about freeze dryers? Contact us to explore freeze dryer specifications and solutions in greater detail.
